Browse and visualize data from OPC UA servers

Multi-platform graphical user interface to view data from any OPC UA server

Prosys OPC UA Browser is a generic OPC UA client application that can be used to connect to any OPC UA server. You can browse the server address space, read and write data and call methods. You can monitor data changes and events, and also acknowledge and confirm alarms. And you can read history of data changes and events from the servers.

Prosys OPC UA Browser is available for all major operating systems (Windows, Linux, macOS). Also, take a look at Prosys OPC UA Client for Android.

Data Access​ icon

Data Access​

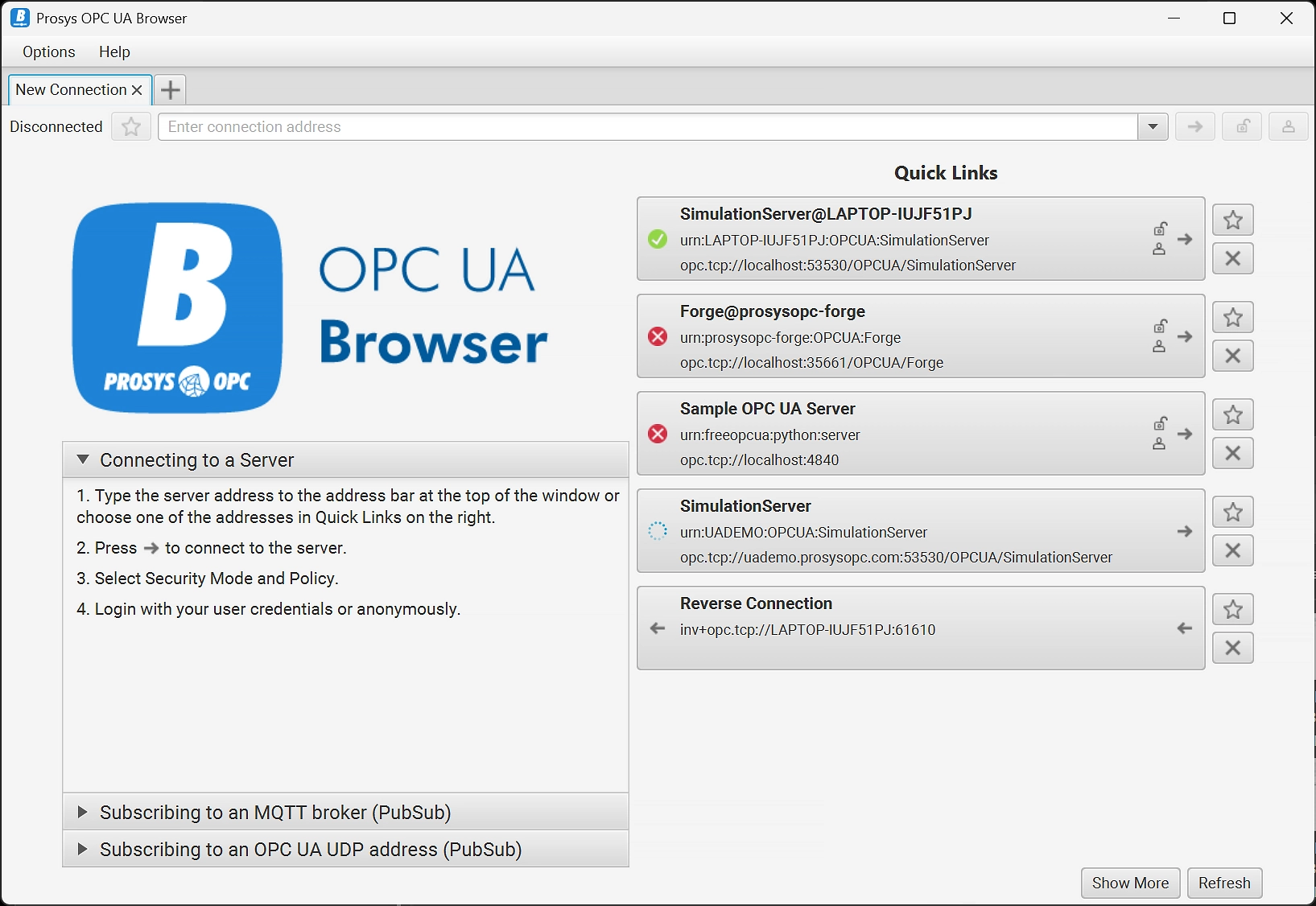

OPC UA Browser enables you to connect to several OPC UA servers at the same time with it’s intuitive web browser like user interface. It supports all OPC UA security modes and policies, including different user authentication methods.

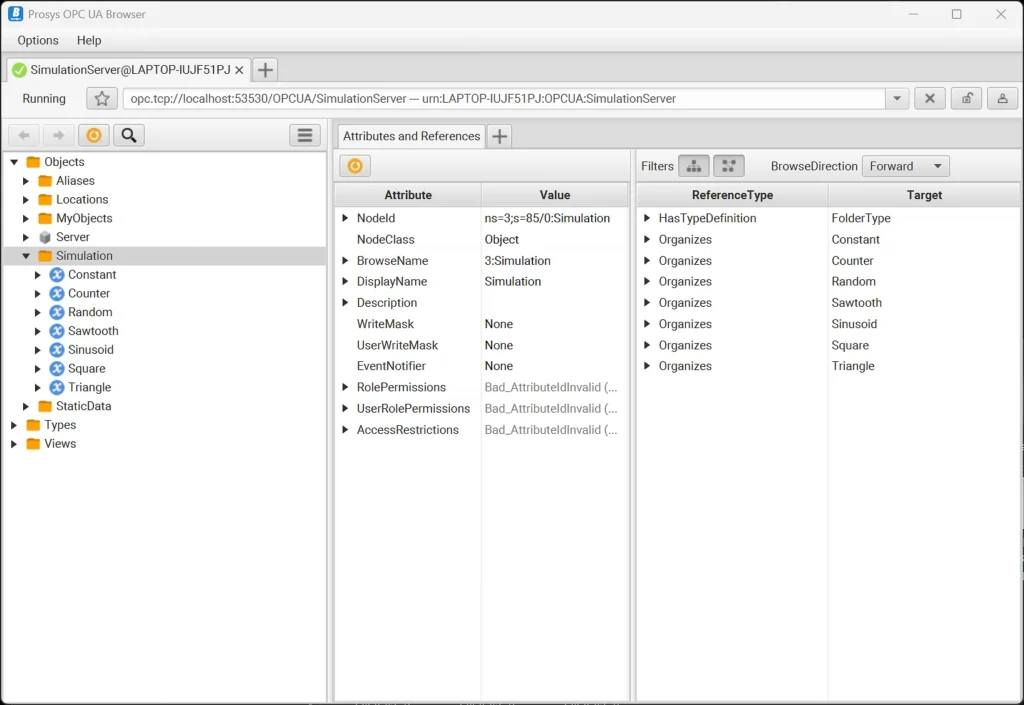

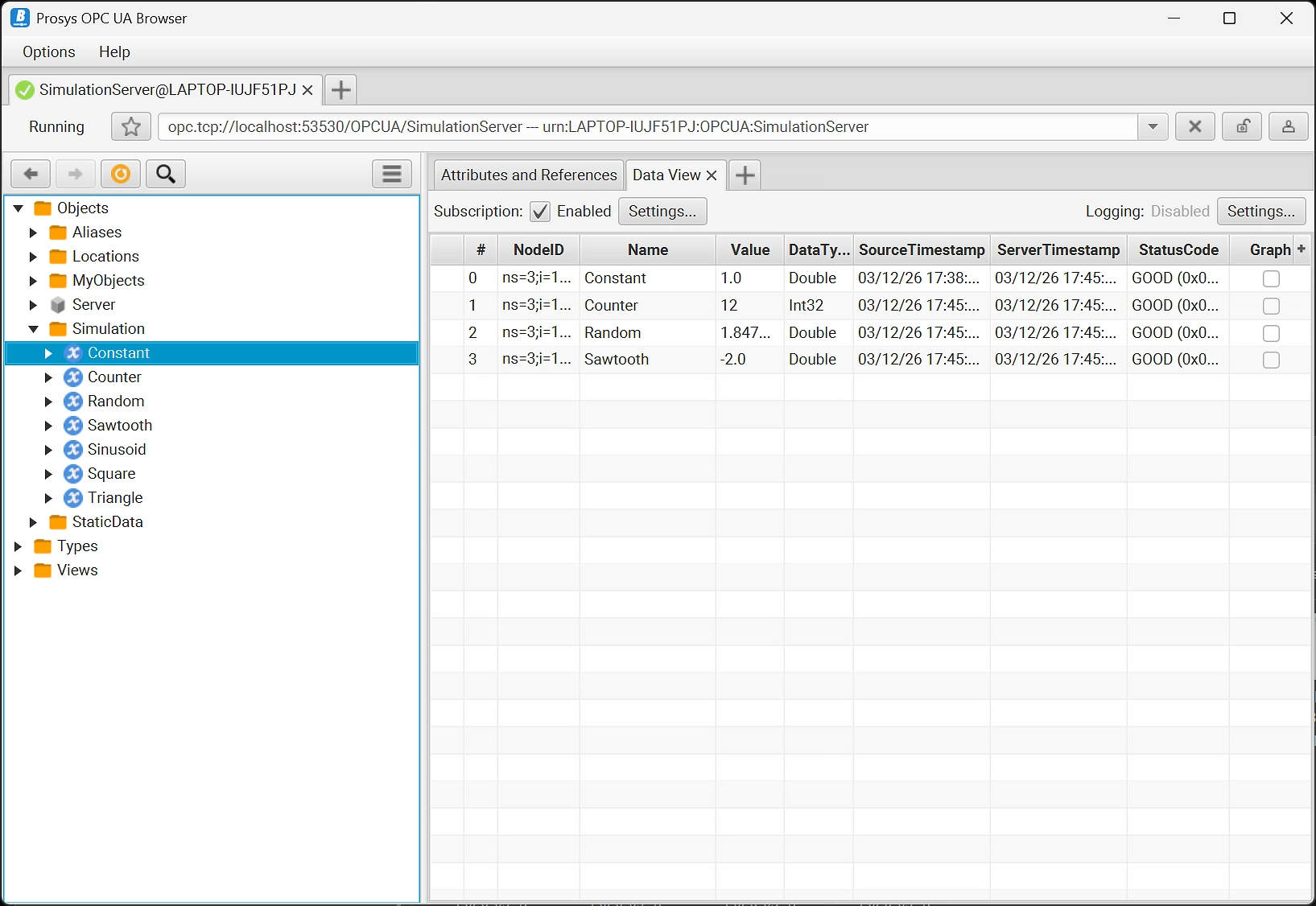

You can access the current data of any OPC UA server via the Server Address Space View. The Attributes and References View shows the basic information of all OPC UA nodes. You can read and write variable values, but also monitor them for data changes using the Data View. You can also visualize data changes with a trend graph and record data changes in a file using the Data Logger functionality.

Historical Access​ icon

Historical Access​

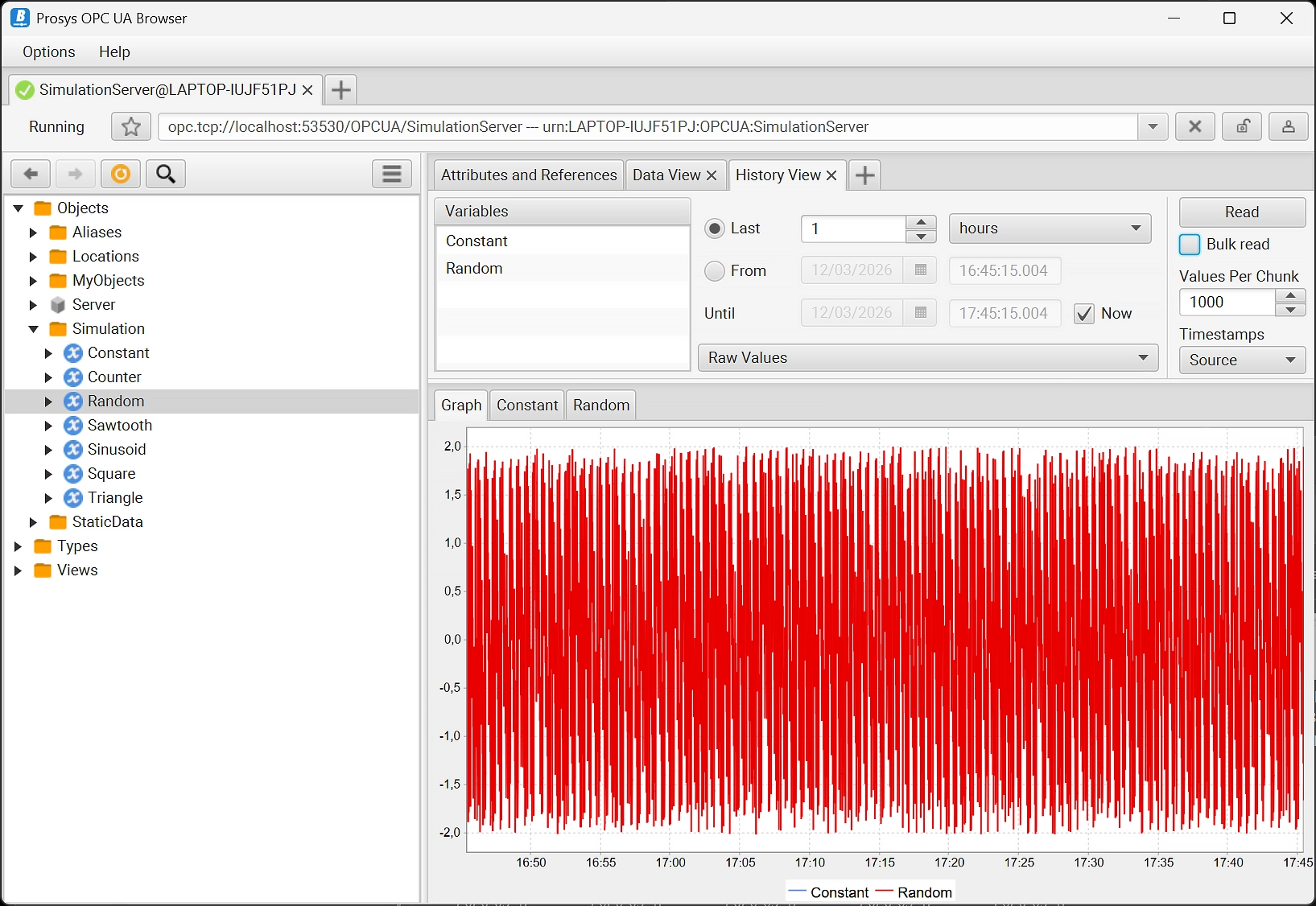

The History View enables you to read variable histories from the server and visualize them in a graph. You can also request aggregated data – such as daily averages, weekly minimums & maximums, etc. – using the OPC UA aggregate functions supported by the server.

Alarms & Conditions​ icon

Alarms & Conditions​

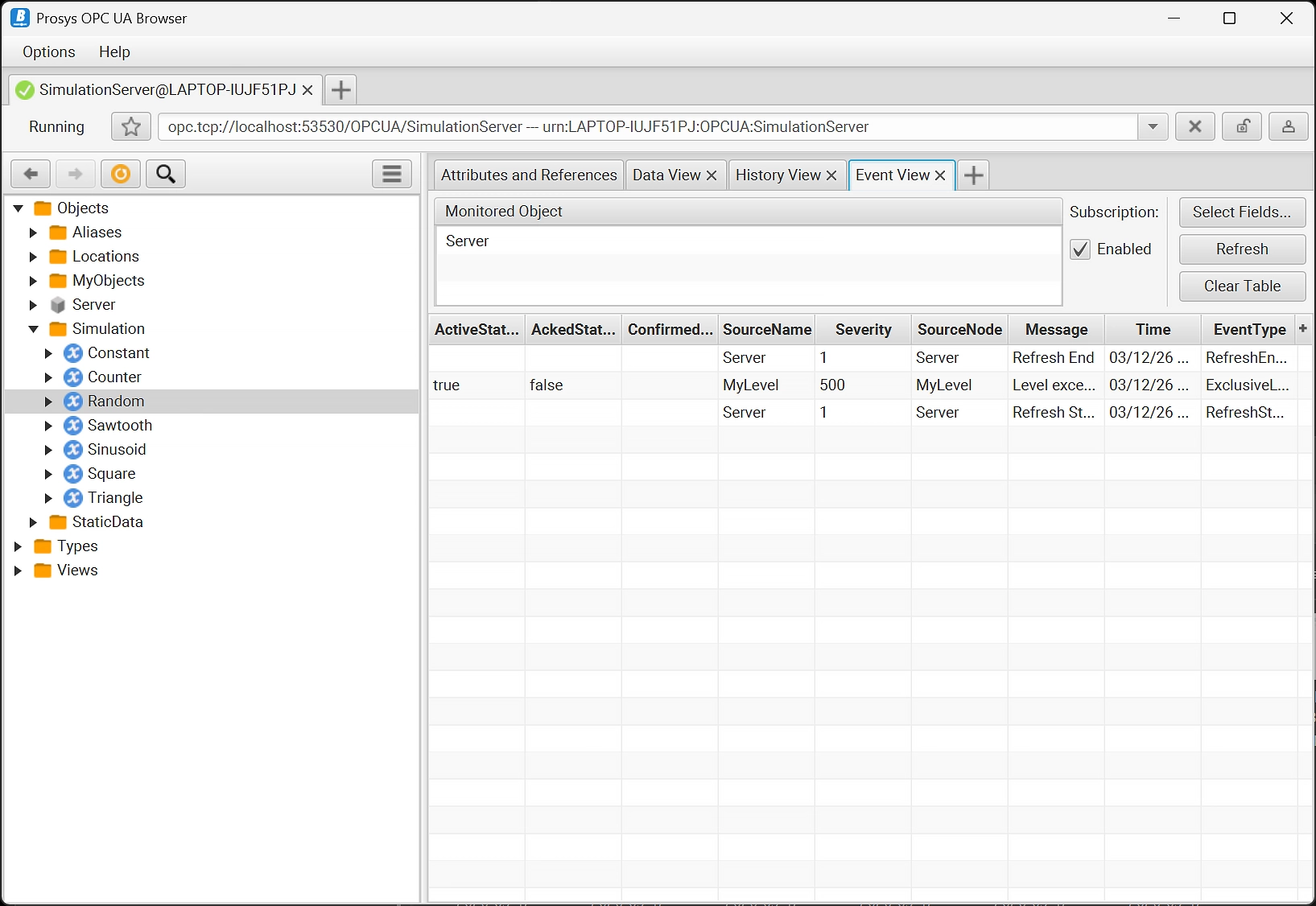

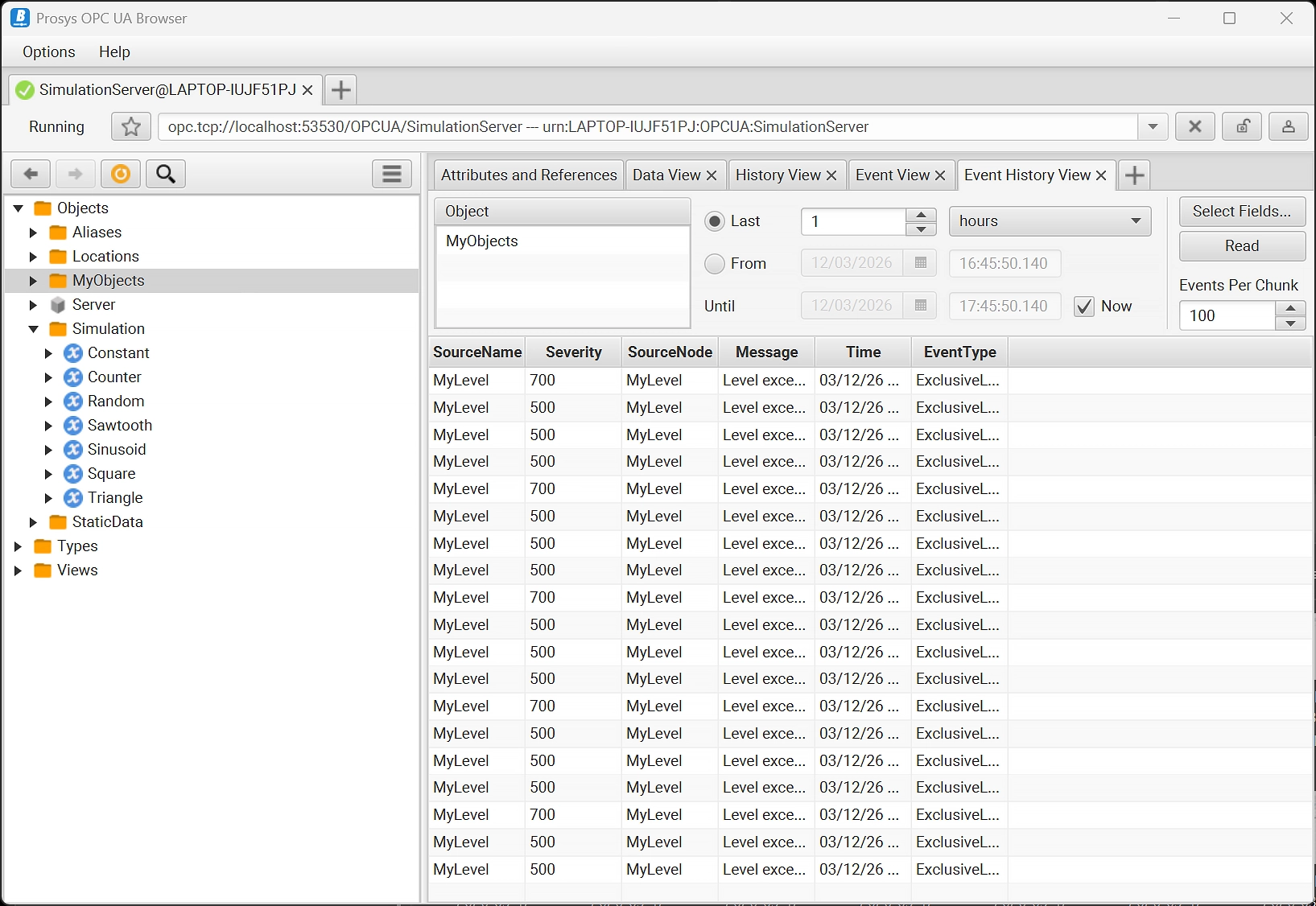

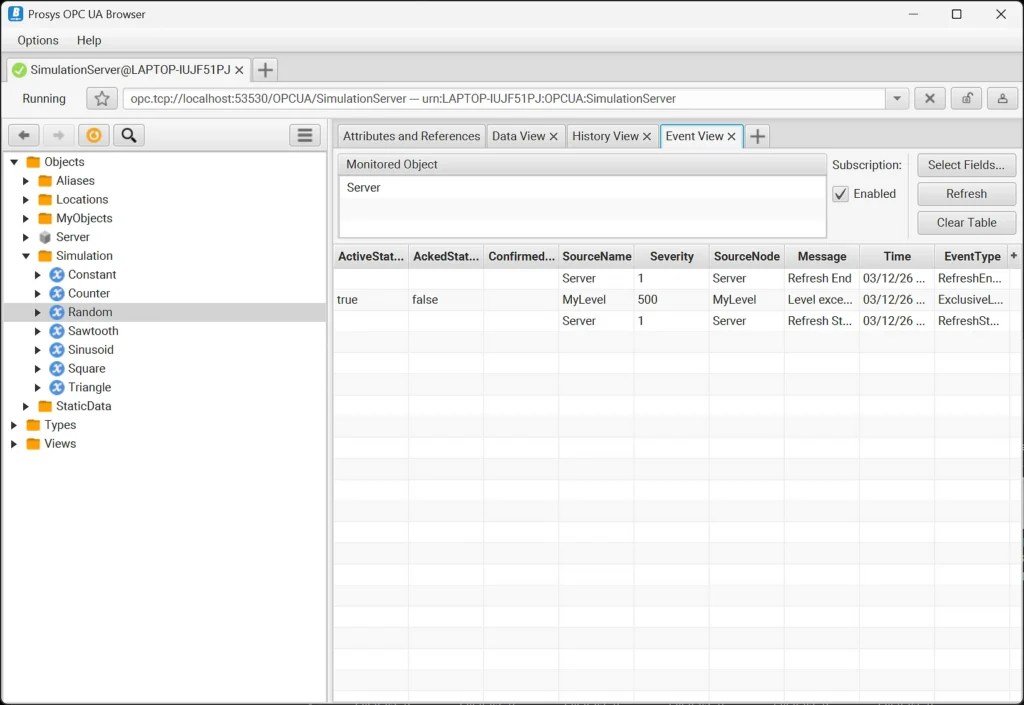

The Event View enables you to monitor server events, including alarms and conditions. You can choose which fields to monitor and you can also acknowledge and confirm alarms. The Event History View enables you to also read event histories from the server.

Certified for Compliance​ icon

Security

Prosys OPC UA Browser supports all OPC UA security modes and policies, including different user authentication methods.

Client-Server Connections icon

Client-Server Connections

  • Browse the server address space
  • Read and write variable values
  • Method calls
  • Monitor data changes
  • Monitor events and alarms
  • Read history data
  • Read event history
  • Data visualization
  • Data logging
PubSub Connections icon

PubSub Connections

  • Display available messages
    • MQTT Topics
    • Publishers & DataSetWriters
  • Monitor data changes
  • Monitor events and alarms
  • Data visualization
  • Message logging

Screenshots

Product Videos

Technical Details

  • Windows
  • Linux
  • MacOS
  • 1.05 and earlier
  • OPC UA TCP (OPC UA Binary)
  • OPC UA HTTPS (OPC UA Binary)
  • MQTT (UADP, JSON)
  • OPC UA UDP (UADP)
  • Current Release: 5.0.0

For more information, please see the Release Notes

  • Aes256-Sha256-RsaPss
  • Aes128-Sha256-RsaOaep
  • Basic256Sha256
  • Basic256 *
  • Basic128Rsa15 *

* Deprecated in OPC UA specification, provided for compatibility with older systems.

  • Free
  • Distribution

Interested in a user-friendly tool for navigating and managing OPC UA servers and data? The OPC UA Browser is your go-to solution for effortless exploration and interaction with OPC UA systems. Discover the full potential of OPC UA!
