Mastering Forge #19: Connecting to S7Comm Devices

Welcome to the 19th tutorial on our series Mastering Forge.

In the previous article, Mastering Forge #18,  we discovered how to access data from OPC UA Events and map it to Forge’s Address Space.

In this article, we’ll dive into the S7 Connector, which native protocol integrates data from Siemens S7 PLCs into Prosys OPC UA Forge. This allows you to expose S7 data as OPC UA nodes, enabling interoperability and standardization across your system architecture. Further, Forge’s other features such as data logging, events and cloud connectivity are possible.

During this tutorial, we’ll be using the following products:

Connect to S7Comm Device

Make sure your S7 device is powered on and reachable over the network.

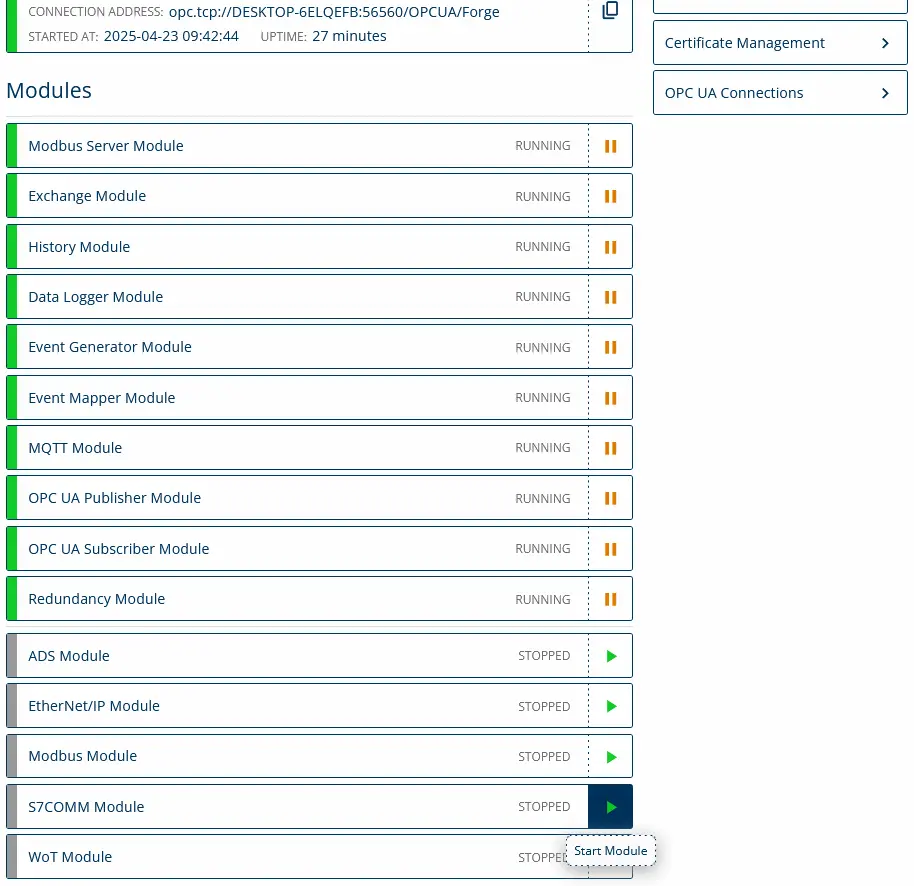

1. From the Dashboard, start the S7COMM Module.

Starting S7Comm Module from the dashboard

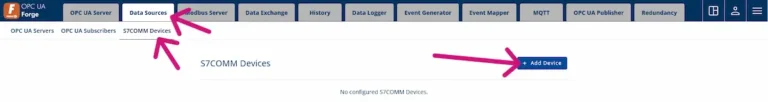

2. Navigate to Data Sources > S7Comm Devices, click + Add Device

Navigate to Data Sources > S7Comm Devices, click + Add Device.

3. Fill in the connection parameters:

  • Name: Enter a descriptive name for the S7Comm configuration.
  • Controller Type: Select the specific model of your S7 device, or choose Auto if you’re unsure.
  • Address: Enter the IP address of the S7 device.
  • Port: Use the default S7 port 102, unless your device is configured differently.
  • Click Add to save configuration.

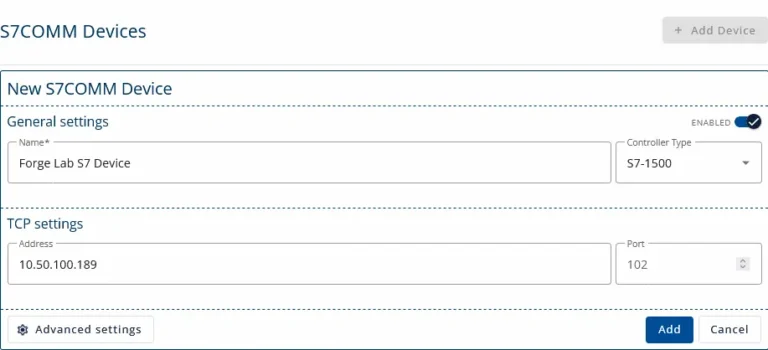

Screenshot of S7COMM device setup with fields for name, controller type, IP address, and port. Contains an example of used devices.

4. Click the list icon and then + sign.

Screenshot showing the "Forge Lab S7 Device" configuration. Two magenta arrows highlight the list icon and the plus (+) button to add new tags.

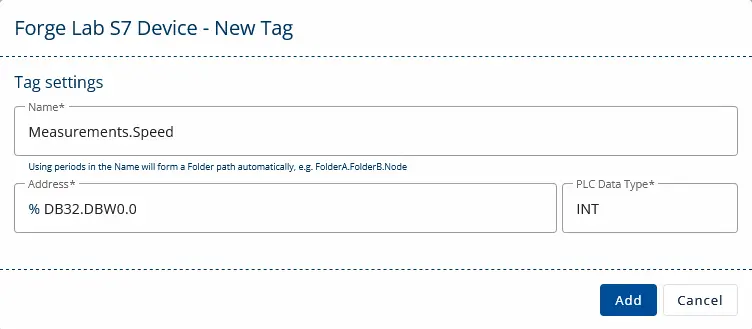

5. Assign a name to the variable, define the memory address to read the measurement from, and select the appropriate PLC data type.

NOTE: Dot notation creates folder.

Configuring the address to receive data from the device.

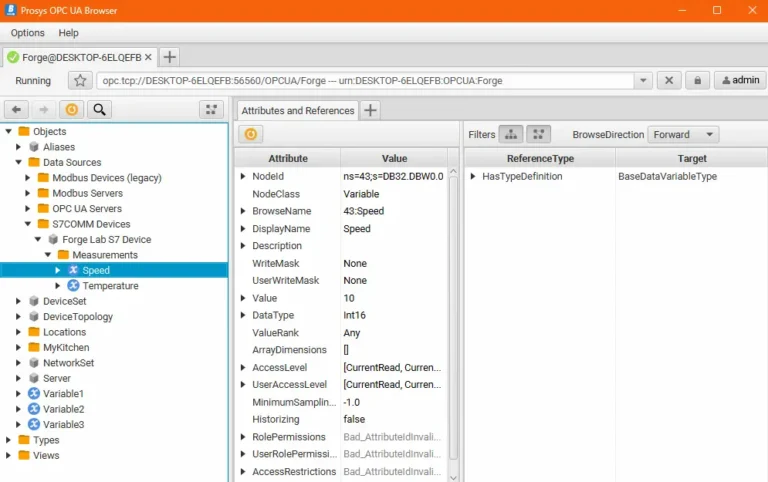

6. To check the configuration, open Prosys OPC UA Browser and read/monitor the created variables. The correct path is: Objects > Data Sources > S7Comm Devices > Forge Lab S7 Device > Measurements > Speed.

Showing the new variables from S7 device with Prosys OPC UA Browser.

Next Steps

This wraps up the 19th article of the Mastering Forge series. Here’s a quick recap of what we did:

  1. Created connection configuration to S7comm device.
  2. Fetched data from the S7comm device to Forge.
  3. Checked the configuration using Browser.

The next article will be the last Mastering Forge tutorial. We will continue developing  tutorials for Forge but this series will end after the next post. In the last episode, Master of Forge, we will browse through a log file, explore configuration files and give you instructions to reset your Forge to defaults.

If you want to learn more about Forge and its capabilities, you can request a detailed introduction by emailing sales@prosysopc.com or using our contact form. We’d be delighted to provide tailored information about Forge that aligns with your interests and requirements.

A headshot of Iivo Yrjölä

Iivo Yrjölä

Customer Integration & Support, Prosys OPC

Email: iivo.yrjola@prosysopc.com
